KNUCKLE BOOM
MK3053C
Crane capacity
2.98t x 1.8m / 1.0t x 5.2m
(Main boom / Jib)
(6,560 lb x 5.9 ft / 2,200 lb x 17.2 ft)
Max.lifting height (on the ground)
12.0m / 16.95m
(Main boom / Jib)
(39.4 ft / 55.6 ft)
Max. working radius
9.4m / 14.3m
(Main boom / Jib)
(30.9 ft / 47.0 ft)
Full Lineup Spec.
Battery
Diesel + Electric
Diesel
STYLE
LIFTING MODE VARIATIONS
Fixed Hook
Max. Capacity :950kg
2-ways Jib
Head Position
Single Fall
Max. Capacity :1,000kg
4 Falls with Main Boom
Max. Capacity :2,980kg
Detachable Jib
by One Person
TECHNICAL DATA
Specifications
| Crane Capacity Main boom / Jib | 2.98t x 1.8m / 1.0t x 5.2m |
|---|---|
| Max. Working Radius Main boom / Jib | 9.4m / 14.3m |
| Max. Lifting Height (on the ground) Main boom / Jib | 12.0m / 16.95m |
| Outrigger Max. Extended Width (outer dims) | (Lateral)4,665 x (Front)4,740 x (Rear)4,800mm |
| Travel Speed | 0 - 2.4km/h |
| Ground Pressure | 83.4kpa [0.85kgf/cm2] |
| Engine (Diesel / Diesel + Electric spec) | KUBOTA Z482-E4B / Diesel |
| Engine Rated Output | 7.2kw/2,600min-1 [9.8ps/2,600rpm] |
| Electric Motor (Diesel + Electric spec) | 4.0kw, 4P 380V (200-415V) |
| Battery System (Battery spec), 5-hour rate capacity | Lithium Titanate Battery, DC55V-135Ah, 7.4kWh |
| Dimensions | 3,195mm(L) x 780mm(W) x 1,945mm(H) |
| Machine Weight (Diesel + Electric / Diesel, Battery) | 2,900kg / 2,875kg |
Dimensions
Specifications
Dimensions

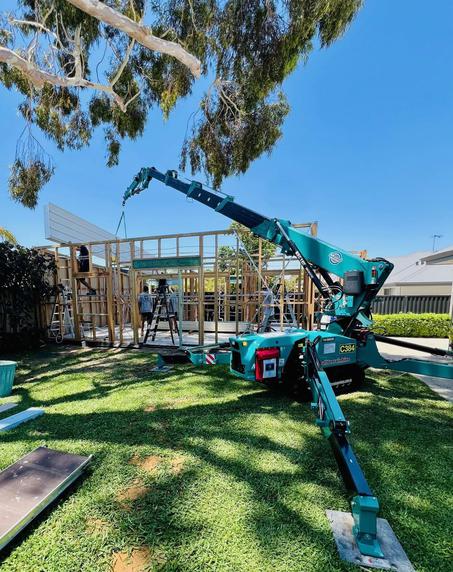

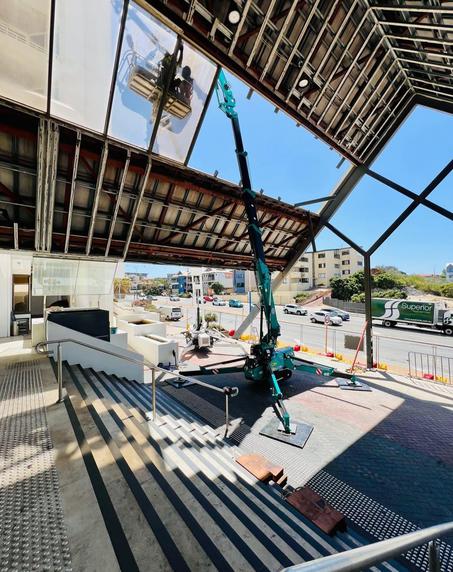

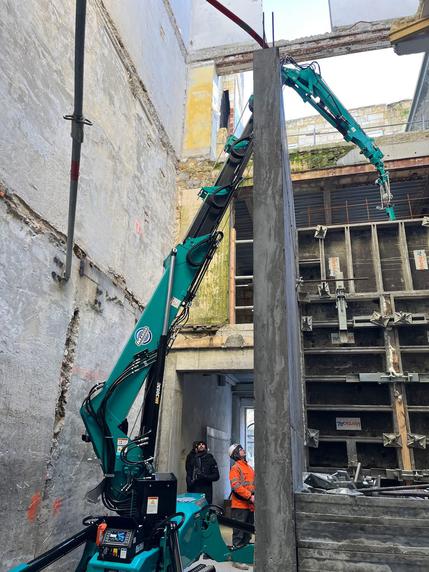

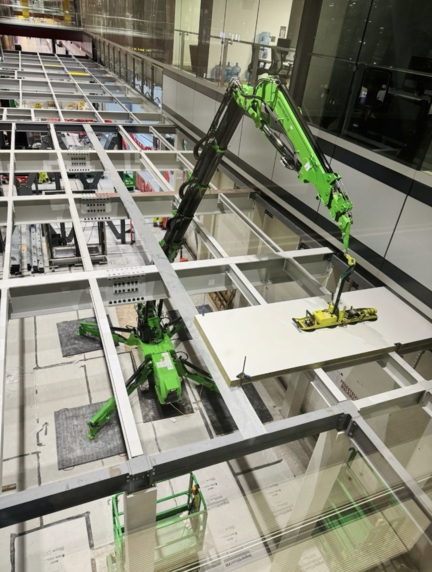

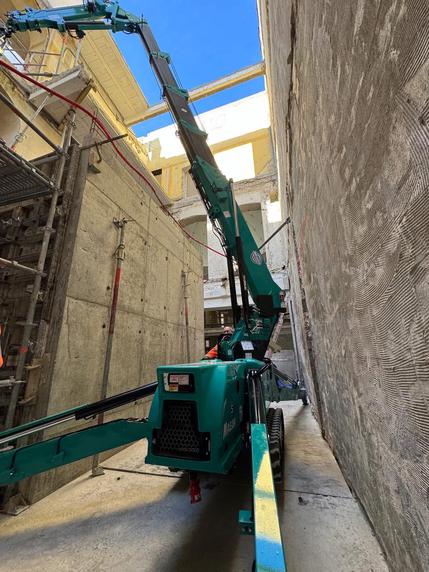

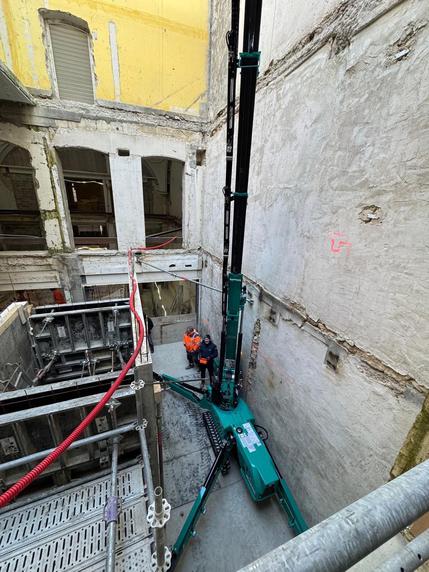

GALLERY
STANDARD EQUIPMENT
All our cranes include a range of standard equipment that ensure the
safety, functionality and usability of the cranes are unsurpassed.
-
Fully Proportional Radio Remote Control
-
Variable Crawler Gauge
-
Automatic & Stepless Multi Outrigger Setting
-
Semi-Automatic Leveling
-
Semi-Automatic Jib & Boom Stowing
-
Programmable Moment Limiter with Working Range Setting
-
Crane/OR Interlock
-
Multi Outrigger Mode
-
Diagnostic Display Panel
-
Data Logger
-
Working Status Lamp
-
Radio Remote Control Working Lamp
-
Fixed Hook
-
Single Fall Hook
-
4 Fall Hook
-
Tilt Alarm
-
Black (for Battery Spec)
or White Rubber Tracks (for Diesel / Electric Spec) -
Detachable Extra Battery Unit
-
Custom Paint Colours
