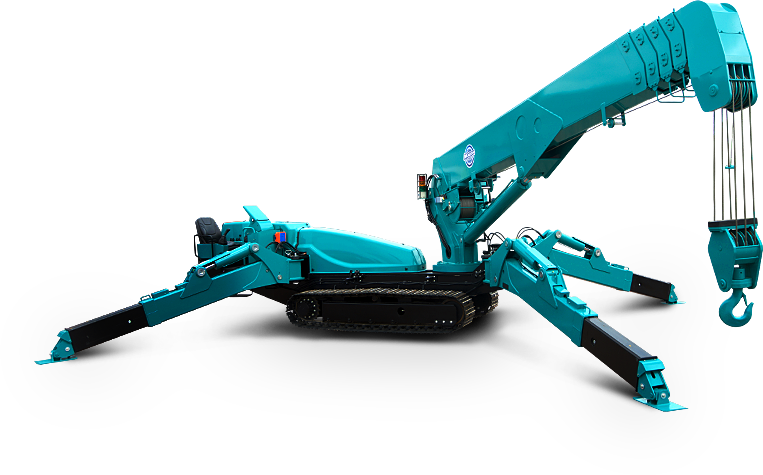

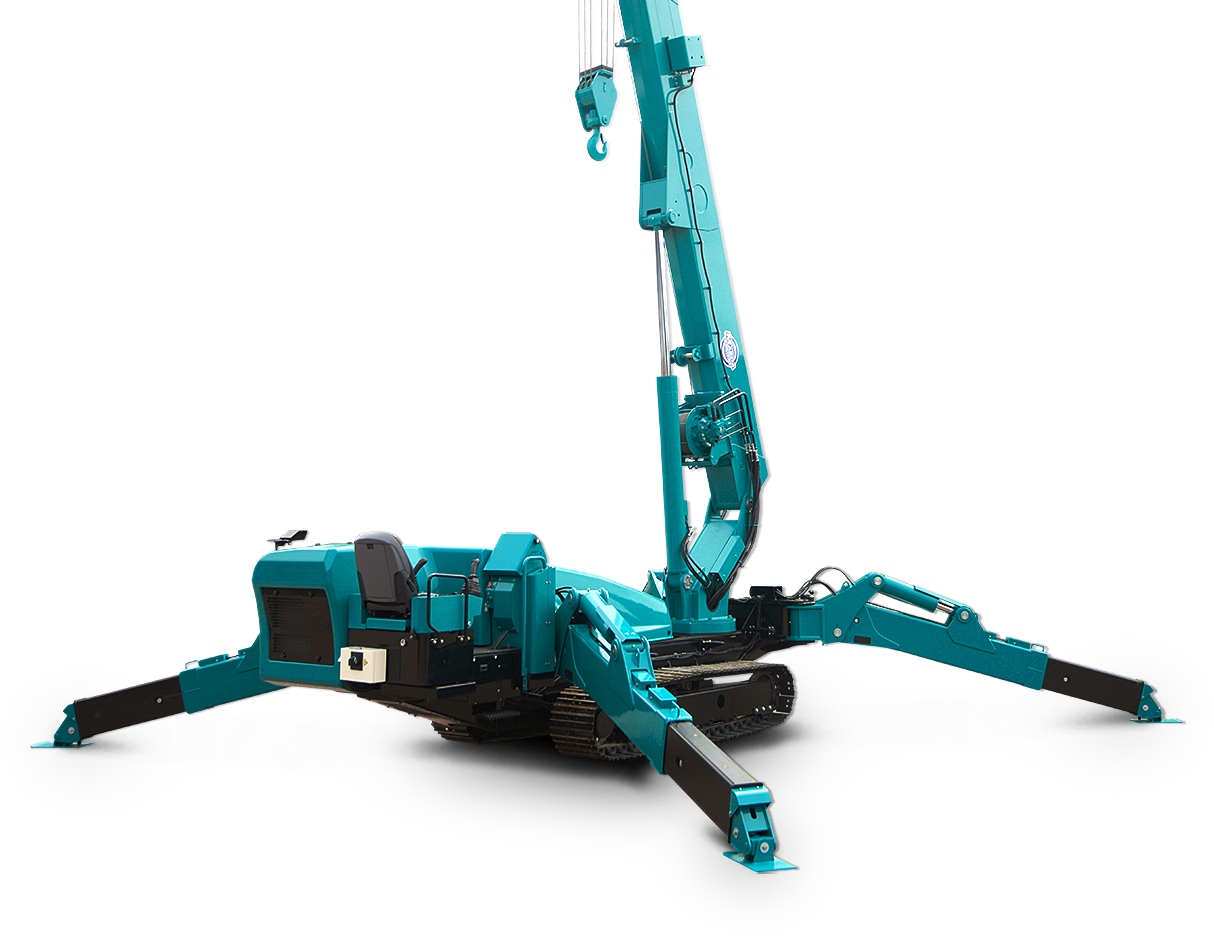

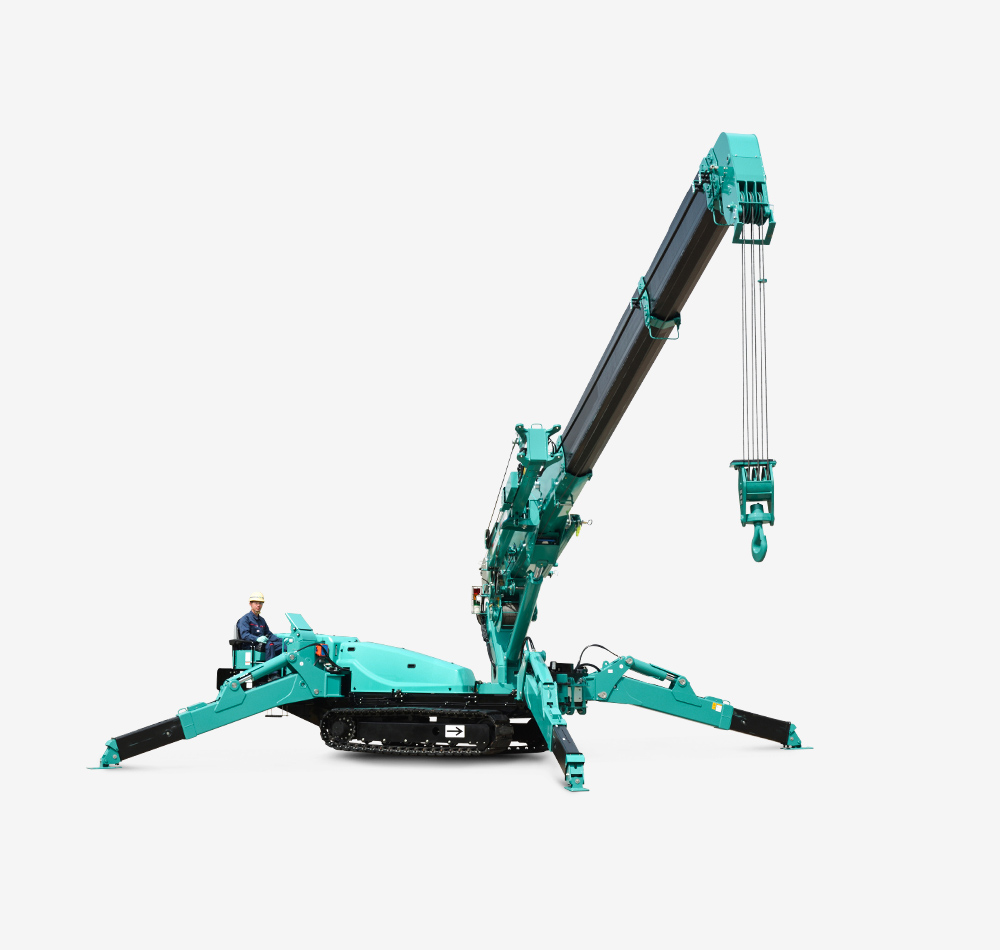

SPIDER CRANE

MC815C

Crane capacity

8.09t x 2.4m

(7,830 lb x 7.5 ft)

Max. lifting height (on the ground)

19.6m

(64.3 ft)

25.5m with fly jib

(83.6 ft with fly jib)

Max. working radius

18.8m x 0.34t

(61.6 ft x 750 lb)

Max. lifting height (underground)

-21.0m (6 falls)

(-68.9 ft)

Pick & Carry capacity

1,000kg

(2,200 lb)

STYLE

OPTION

Fly Jib

  • Yes
  • No

TECHNICAL DATA

Working Range Chart

Specifications

Crane Capacity 8.09t x 2.4m
Max. Working Radius 18.8m x 0.34t (0.44t at P-Mode)
Max.Lifting Height 19.6m (25.5m with fly jib)
Max. Reach Below Ground -21.0m (6 falls) /-126.0m (single fall)
Outrigger Max.Extended Width (Lateral) 6,770mm x (Front) 6,300mm x (Rear) 6,520mm
Pick & Carry Capacity 1,000kg
Travel Ground Pressure (MC815CRM) 52.0kpa [0.53kgf/m2]
Travel Ground Pressure (MC815CRME) 53.0kpa [0.54kgf/m2]
Engine YANMAR 4TNV88C-NMB / Diesel
Engine Rated Output 30.5kw/2,500rpm
Electric Motor 15kw, 4P 380V
Dimensions 5,900mm (L) x 1,670mm (W) x 2,490mm (H)
Machine Weight 9,460kg (9,700kg with electric motor)

Dimensions

STANDARD EQUIPMENT

All our cranes include a range of standard equipment that ensure the
safety, functionality and usability of the cranes are unsurpassed.

  • Joystick Radio Remote Control
  • 6 fall/4 fall/2 fall Hook Block
  • Working Status Lamp
  • Front & Side View Camera

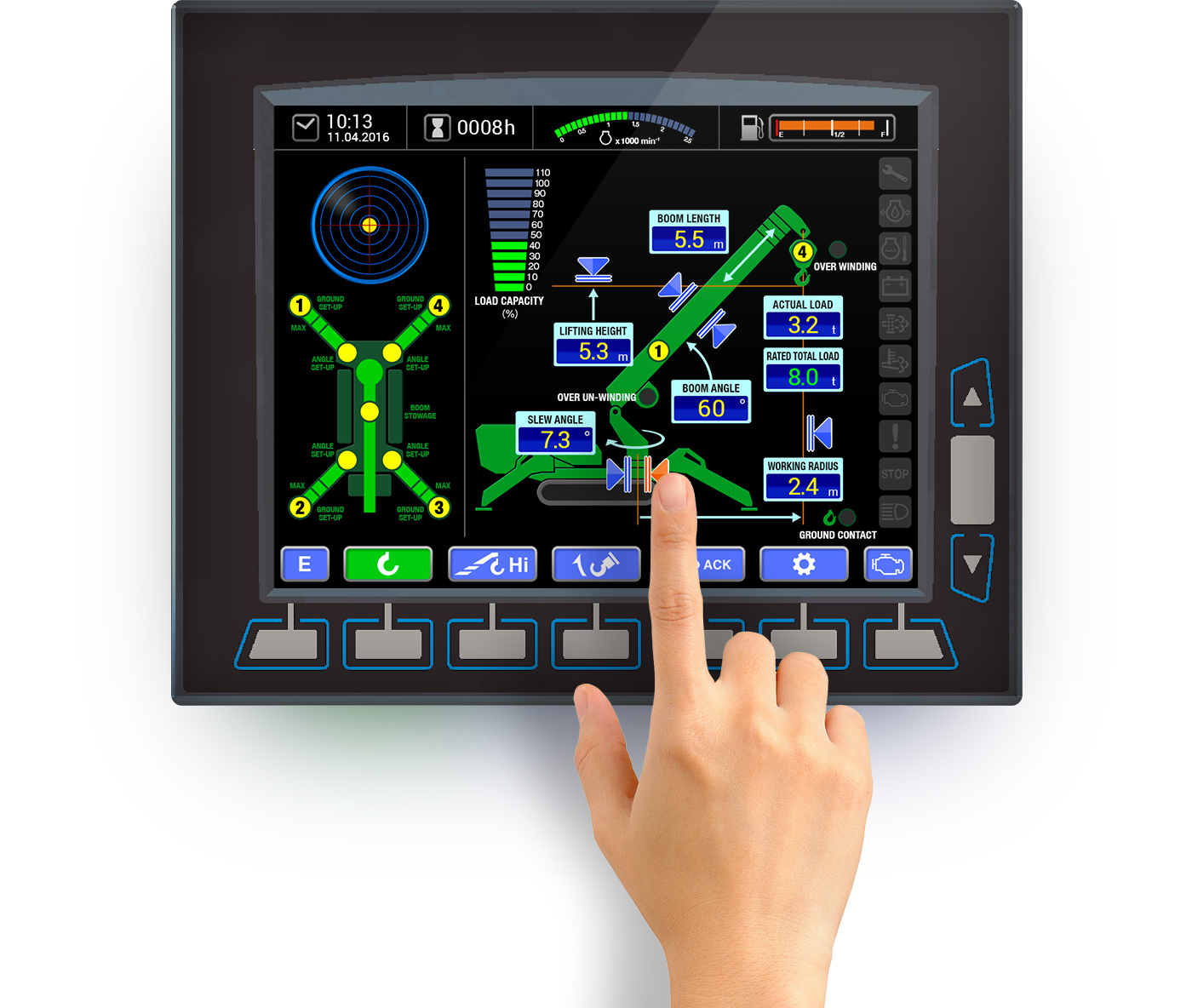

  • Programmable Moment Limiter (Touchscreen)
  • Crane/OR Interlock
  • Tilt Alarm
  • Slew Angle Limit Setting
  • Diagnostic Display Panel
  • Data Logger
  • Anti Slack Device
  • Auto Levelling Function
  • Auto-Crane Stow Function
  • 2 Speed Functions
  • Crane speed accelerator
  • Multi Lifting Mode
  • Power Lifting Mode
  • Pick & Carry

OPTIONS

A range of optional equipment that enables our cranes to adapt
to all kinds of work and environmental factors.

  • Electric Motor Power
    (Inverter System)
  • Single Fall Hook
  • Searcher Hook
  • Hydraulic Fly Jib
  • Rubber Pads (Black)
  • Rubber Pads (White)
  • Custom Paint Colours
